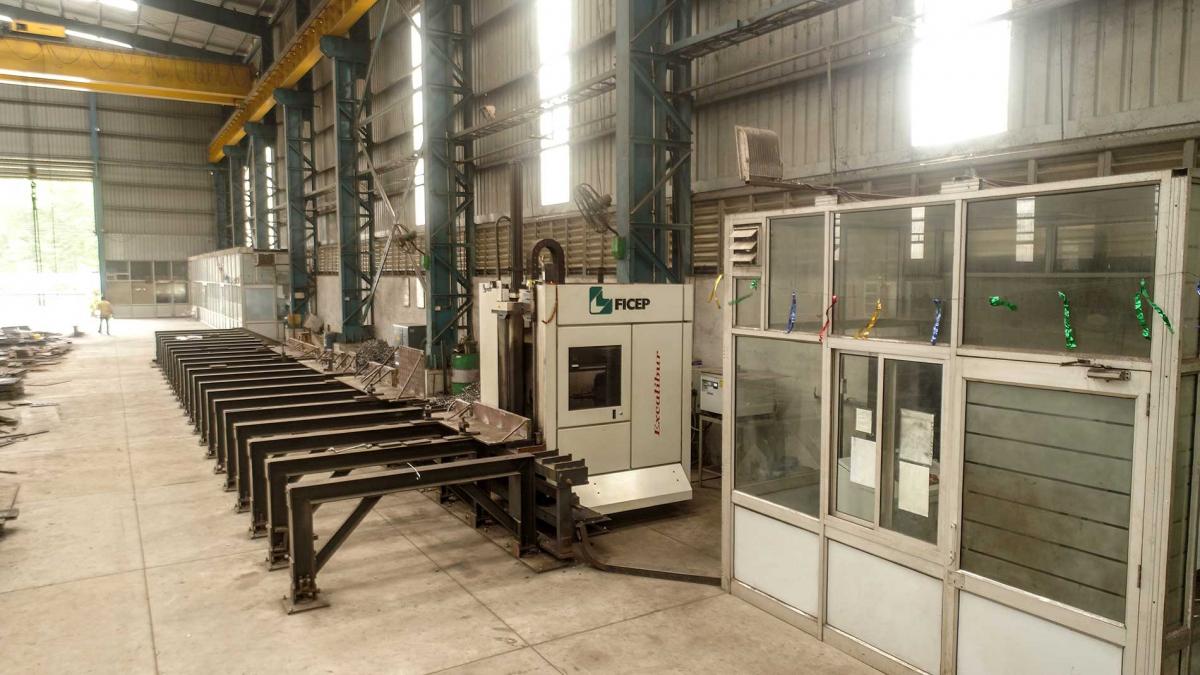

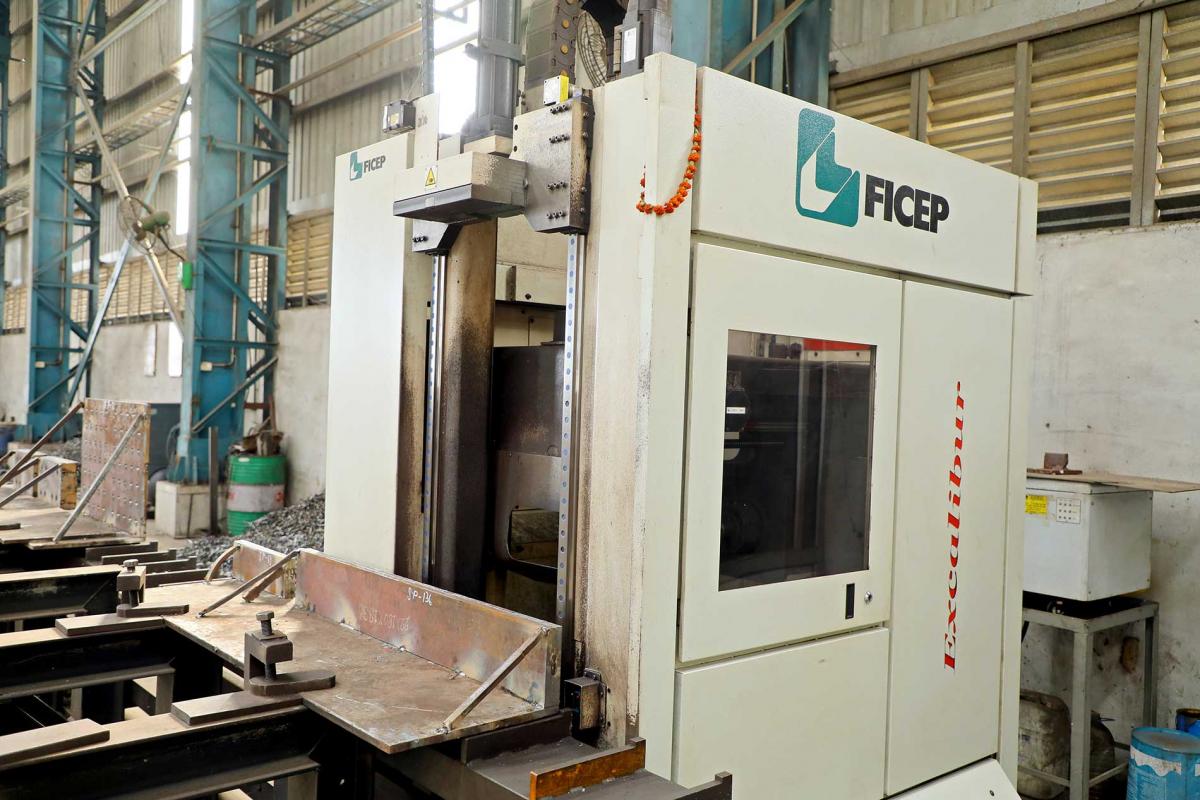

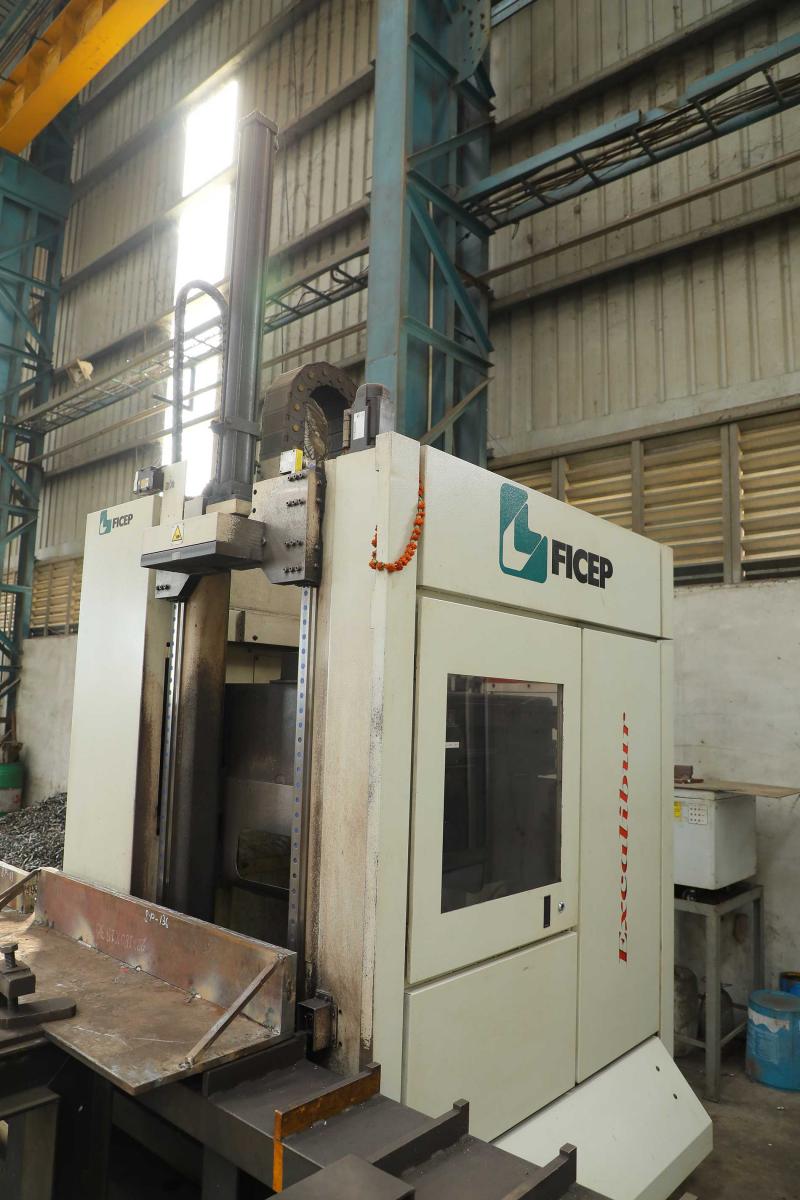

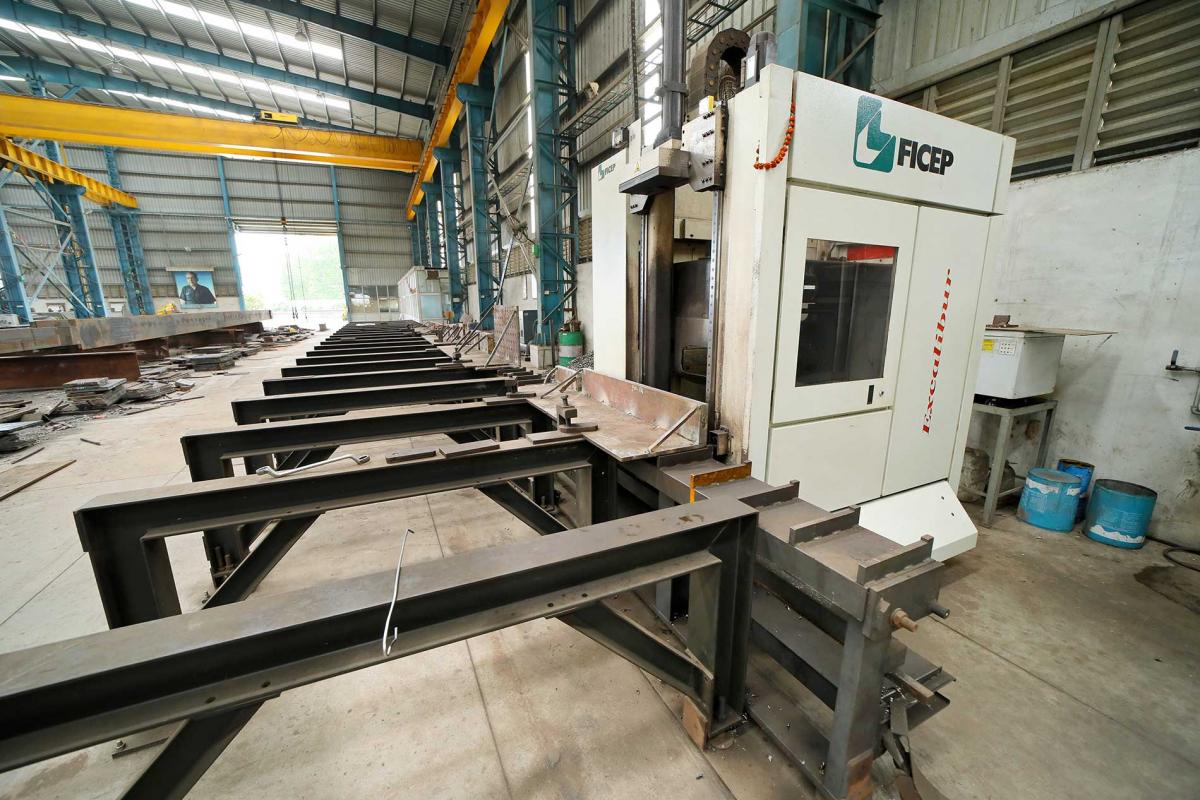

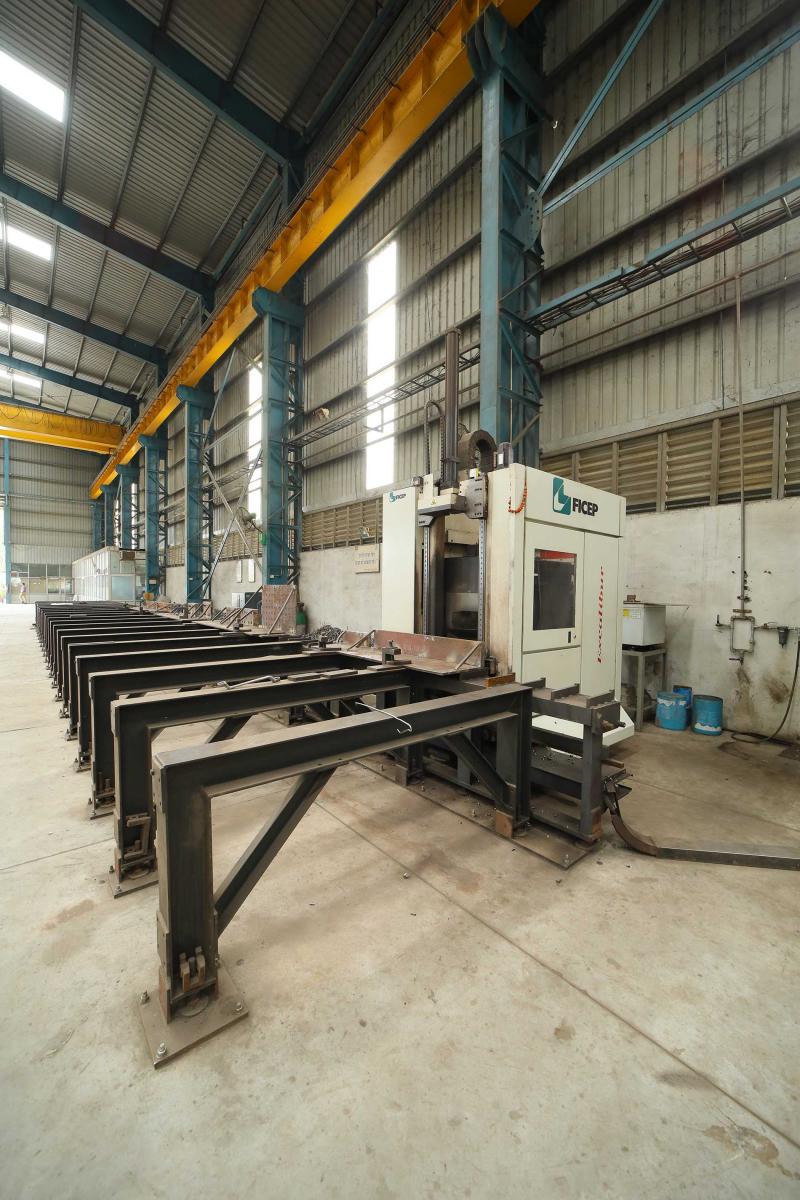

GISF Engineering Private Limited has installed a high-performance Italian-engineered CNC Drilling Machine, specifically designed for precision drilling of heavy steel beams and box sections used in power, infrastructure, and industrial projects. This advanced machine significantly enhances drilling accuracy, speed, and consistency while reducing manual intervention.
The CNC Drilling Machine is capable of processing steel beams and box sections up to 1200mm × 3000mm × 18000mm in length, making it ideal for large structural components required in bridges, power plants, and heavy industrial structures. Equipped with a single high-speed spindle operating up to 3000 RPM, the machine supports carbide drilling operations with a maximum drilling capacity of 50mm diameter.
Designed for high productivity, the system can achieve a drilling output of approximately 50 meters of running length per day, based on an average hole diameter of 26mm in steel. This high throughput enables GISF to meet tight project schedules without compromising precision or quality.
The machine ensures:
-
Accurate hole positioning and repeatability
-
Smooth and burr-free drilling results
-
Efficient processing of long and heavy structural members
-
Reduced cycle time and enhanced fabrication efficiency
With this CNC drilling capability, GISF Engineering Private Limited ensures faster execution, superior dimensional accuracy, and compliance with stringent international fabrication standards for power, refinery, infrastructure, and bridge projects.
